Choosing the right core—and the right grain‑oriented silicon steel—based on transformer classification delivers:
· Energy savings – Correct grade and gauge minimize no‑load losses.
· Regulatory compliance – Meet efficiency standards.
· Operational reliability – Proper core design reduces hot spots, noise, and aging.
· Cost efficiency – Optimized material usage and yield lower total manufacturing cost.
Core‑Type Transformers

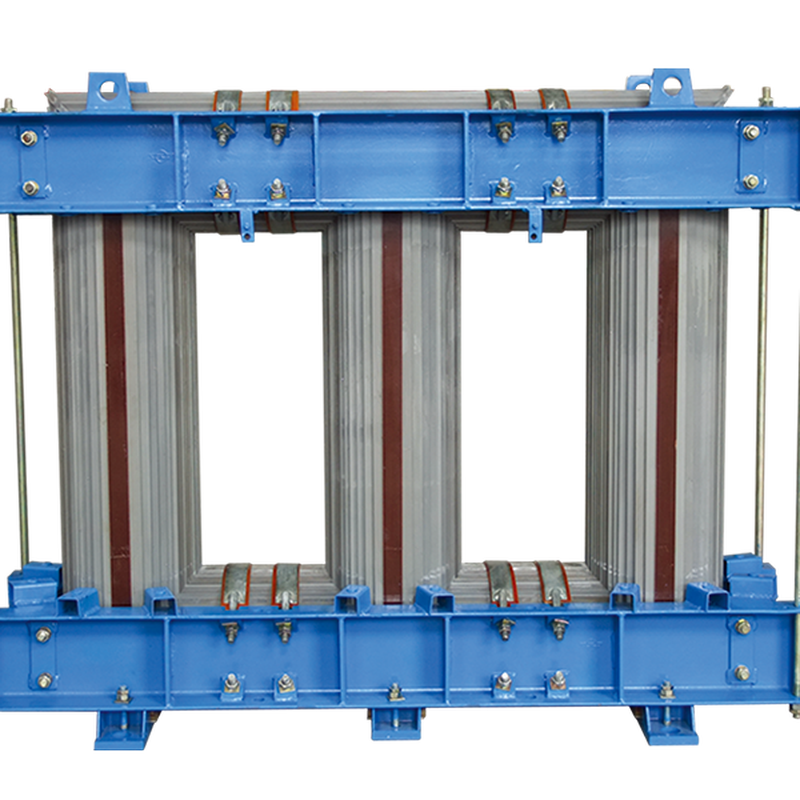

Windings surround the limbs. Stepped lap joints reduce joint losses; cores are assembled from laminations or wound strip. High‑permeability GO minimizes core cross‑section and copper losses.
Shell‑Type Transformers
Core surrounds the windings. Flux‑dividing structure with stacked laminations; precise stacking ensures magnetic symmetry. GO with excellent flatness and uniform coating for consistent stacking factor.
Wound Cores (C‑cores, toroidal)
Continuous strip wound into a ring, cut or uncut. Used in single‑phase distribution, instrument, and specialty transformers. GO requires high ductility, uniform tension, and narrow strip widths for toroids.
