Medium Power Transformer Core

Quantity:
Availability:





Inquire Add to Basket

Product Description

Core Manufacturing Excellence – From Coil to Core

By Number of Phases – Stacking & Cutting Patterns for definition of transformer cores

Single‑Phase Cores

Two‑leg or three‑leg stacked cores. Wound cores are popular for distribution due to lower joint losses. GO utilization: higher flux density in legs; mitered overlaps critical to avoid local saturation.

Three‑Phase Cores

Three‑leg stacked (common for distribution) and five‑leg (for large power transformers to reduce height). GO utilization: yoke and limb sections require different cutting angles; advanced nesting software maximizes material yield from master coils.

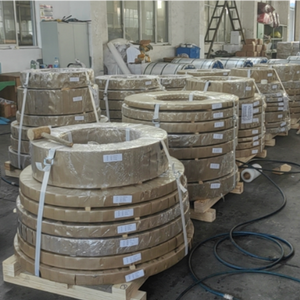

The process from grain‑oriented silicon steel coil to core involves:

1. Slitting – Precision width cutting with controlled burr height.

2. Punching / Cutting – Step‑lap, mitered, or straight cuts with minimal magnetic degradation.

3. Stacking – Automated or manual, ensuring uniform stacking factor .

4. Annealing (if required) – Stress‑relief annealing restores magnetic properties after cutting; coating must survive this process.

5. Assembly & Clamping – Uniform pressure prevents lamination vibration and maintains low core loss.
