Transformer Core Lamination Process

The lamination process for transformer cores constitutes the core stage of core manufacturing; by stacking silicon steel sheets in a specific configuration, it establishes a closed magnetic circuit while minimizing magnetic losses. This process entails several steps—including material pretreatment, cutting, and stacking—to ensure that the finished core possesses superior magnetic permeability and structural stability.

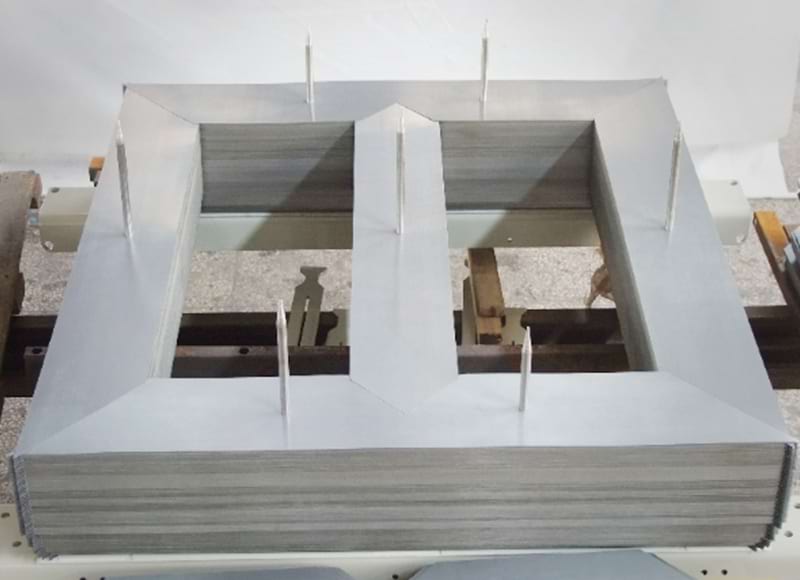

First, the surfaces of the silicon steel sheets undergo pretreatment to remove oil stains and oxide layers, thereby preventing any compromise to the insulation effectiveness between adjacent laminations. Subsequently, the sheets are cut to size in accordance with the core's dimensional specifications; this cutting process must ensure smooth edges to minimize burrs that could interfere with the magnetic circuit. During stacking, an interleaved assembly method is employed to stagger the joints of adjacent sheets, thereby preventing the formation of continuous air gaps within the magnetic circuit and effectively reducing magnetic reluctance and eddy current losses. Throughout the assembly process, positioning pins or fixtures are utilized to secure the laminations, ensuring the overall perpendicularity and dimensional precision of the core.

In certain manufacturing processes, an insulating varnish is applied to the surface of the silicon steel sheets to further mitigate inter-lamination eddy currents. Upon completion of the stacking, the core undergoes a compaction process—secured via mechanical pressure or binding—to prevent structural loosening caused by operational vibrations. For large-scale cores, a segmented stacking approach is often adopted, followed by final assembly into a unified structure using bolts or welding. The lamination process directly influences the core's magnetic permeability, power losses, and noise levels; consequently, the adoption of an optimal stacking method can significantly enhance transformer efficiency and extend the equipment's service life, making it one of the pivotal stages in transformer manufacturing for ensuring overall performance.
