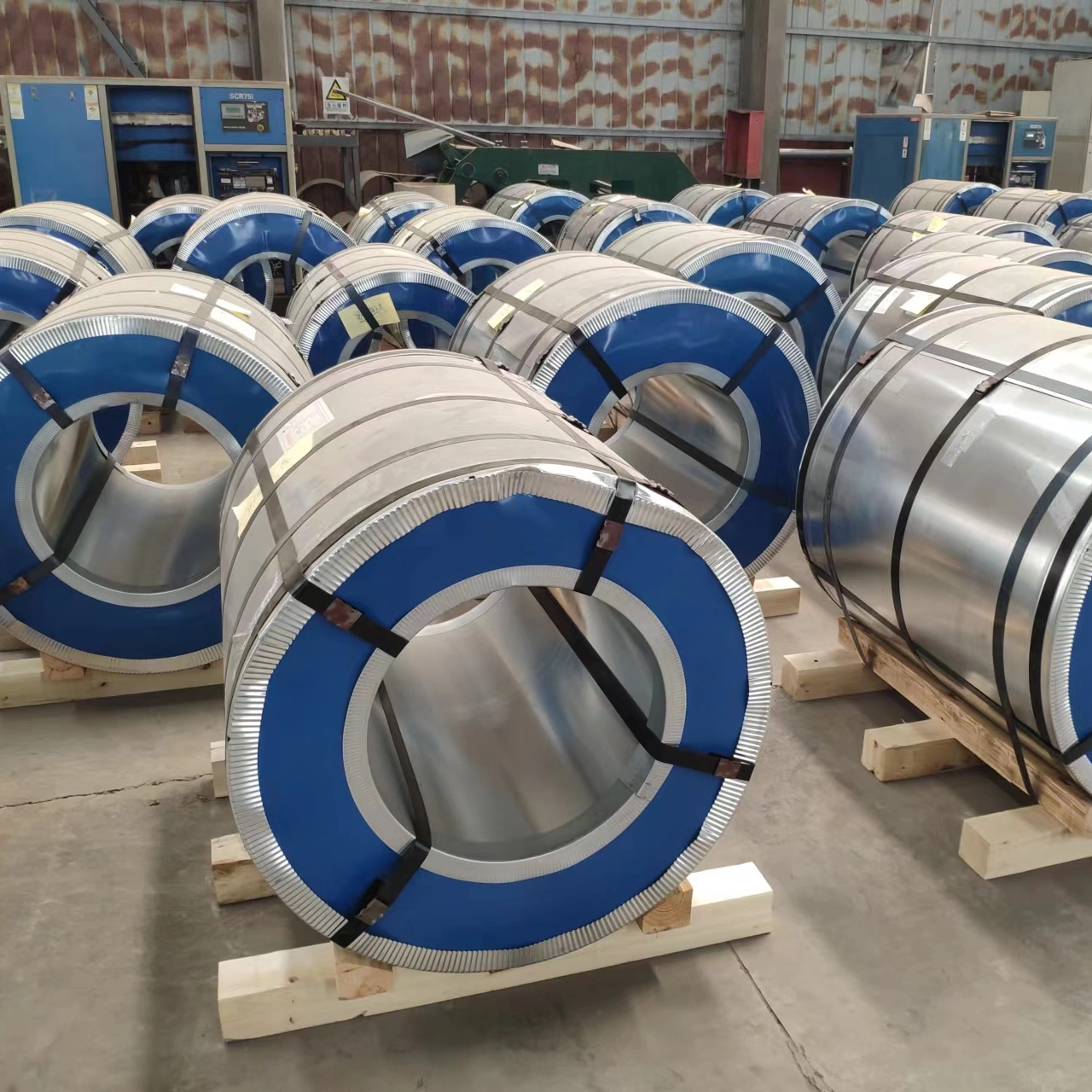

Grain-oriented precision-cut coils
To be cut in accordance with the requirements of the clients
| Quantity: | |
|---|---|
Grain-oriented precision-cut coils
To be cut in accordance with the requirements of the clients
 |  |
By core Construction-Magnetic Path& Manufacturing, to Identify cores of transformer
Core‑Type Transformers
Windings surround the limbs. Stepped lap joints reduce joint losses; cores are assembled from laminations or wound strip. High‑permeability GO minimizes core cross‑section and copper losses.
Shell‑Type Transformers
Core surrounds the windings. Flux‑dividing structure with stacked laminations; precise stacking ensures magnetic symmetry. GO with excellent flatness and uniform coating for consistent stacking factor.
Wound Cores (C‑cores, toroidal)
Continuous strip wound into a ring, cut or uncut. Used in single‑phase distribution, instrument, and specialty transformers. GO requires high ductility, uniform tension, and narrow strip widths for toroids.
 |
|
